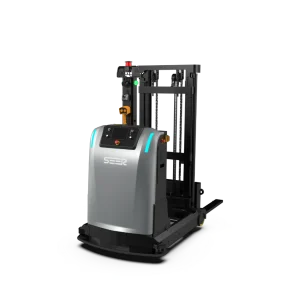

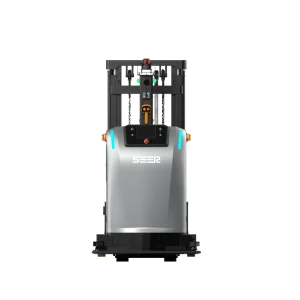

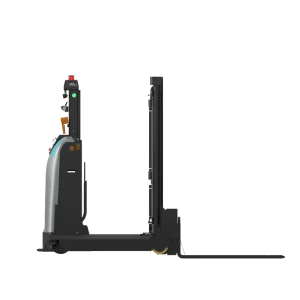

Narrow-aisle reach truck
Safe stacking at high altitude, also in narrow aisles
Key features:
- 1.4 tons loading capacity. The robot width is only 118 cm and the minimum aisle width is just 150 cm – fit for narrow aisles.
- The 360° maximum scanning range and 30 m detection range provides a broader vision and enhanced safety. Equipped with 2D obstacle avoidance laser, distance sensor and hardware self-checks, our robot offers you unparalleled multi-layer safety protection.
- AI deep learning with improved recognition ability: recognize pallets, racks and cages in different colors and sizes with unparalleled precision and adaptability from multiple angles, achieving seamless and stable loading and unloading.
Selected specifications:
| Navigation type | Laser SLAM |
| Pallet type | Any pallet type |
| Load capacity | 1400 kg |
| Weight (with battery) | 2060 kg |
| Standard lifting height | 3000mm |
| Forklift dimensions: L x W x H | 2162 x 1200 x 2180 mm |
| Right-angle stacking aisle width, europallet | 2306+200 mm |
| Minimum turning radius | 1480 mm |
| Battery life | 8 h |
| Charging time (10% to 80%) | 2,5 h |
